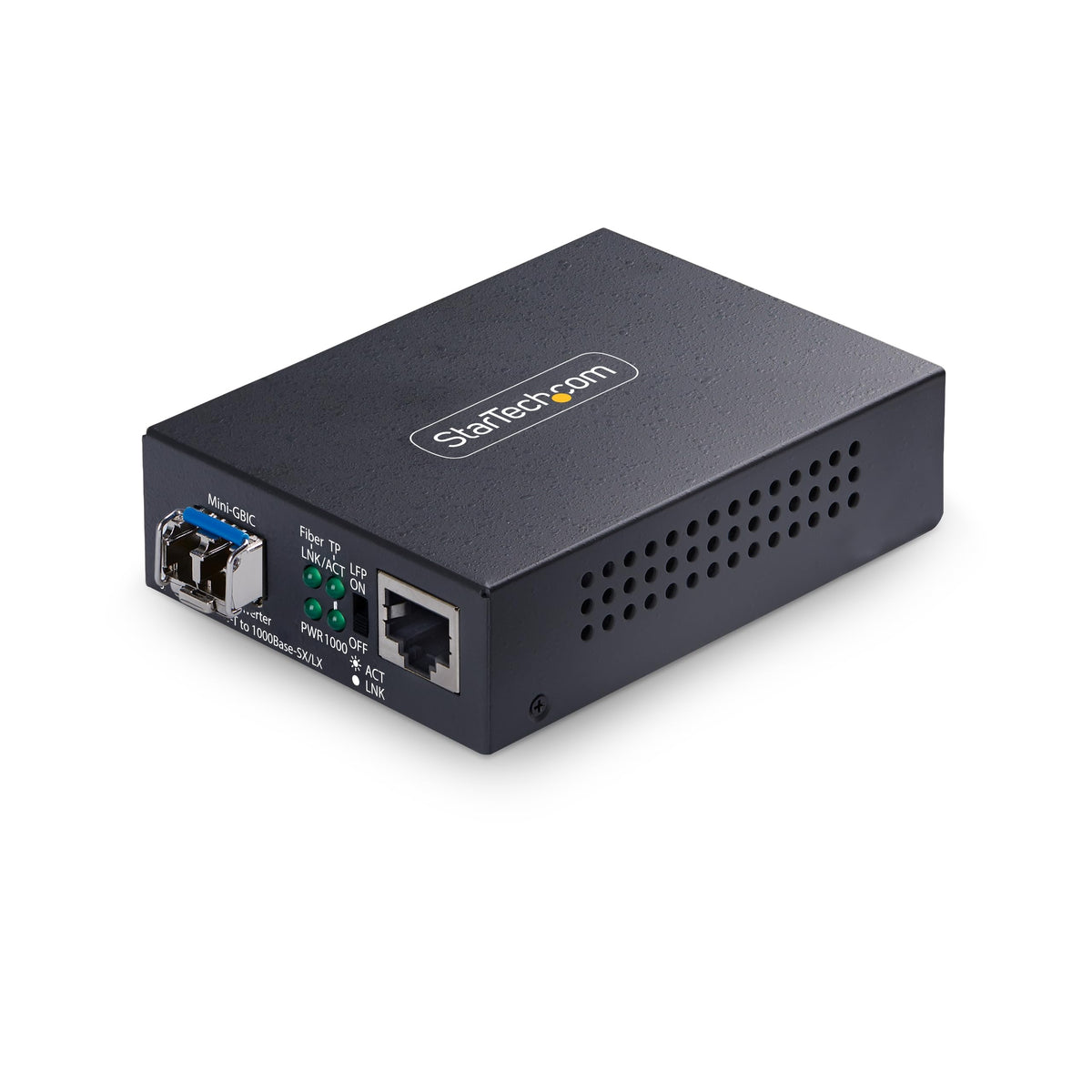

Startech MCMGBSCSM10 10M Fiber Media Converter SM 1000BASE-LX
- Brand Startech
- Maximum data transfer rate 1000 Mbit/s
- Converter input interface 10Base-T, 100Base-TX, 1000Base-T
- Converter output interface 100Base-LX
- Ethernet interface type Fast Ethernet, Gigabit Ethernet
$132.21
In Stock (2 available)
- 30-day returns
- Manufacturer warranty
- Free shipping over $49 (Canada)
Free Shipping on Orders $49+
Estimated delivery
Get it by —
Overview
This Startech fiber media converter enables reliable long-distance networking over single-mode fiber. The 1000BASE-LX connection supports gigabit Ethernet transmission up to 10 meters. Compact design fits easily into standard rack or shelf installations.
Key features
- 10M fiber span distance
- 1000BASE-LX gigabit Ethernet standard
- Single-mode (SM) fiber support
- Compact dimensions: 11.3" L × 5.5" W × 2.7" H
- Net weight: 1.15 pounds
- <b>Deploy Efficiently in Compact, Power-Sensitive Spaces</b>: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada, and 30-day hassle-free returns. Our team is here when you need us.
| Maximum data transfer rate | 1000 Mbit/s |
|---|---|
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 100Base-LX |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Duplex system | Full |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Fiber optic connector | SC |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| External power adapter | Yes |
| Power plug type | Type N |
| Width | 105 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 196 g |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Package width | 120 mm |
| Package depth | 226 mm |
