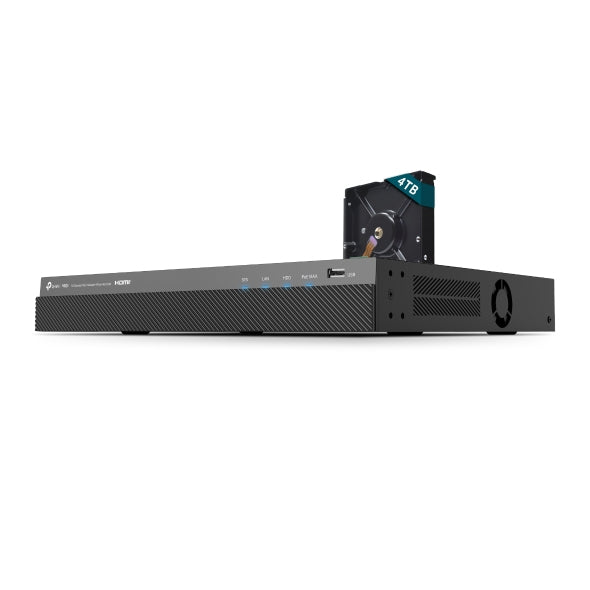

TP-Link VIGI 16 Channel PoE+ NVR 4TB - 4K Security
TP-LinkSKU DH-VGNVR2016H164CAIEEE 802.3af, IEEE 802.3at
13% OFF
In Stock (10 available)
- 30-day returns
- Manufacturer warranty
- Free shipping over $49 (Canada)
Get it by —
Overview
Built for small business security teams who need reliable, all-in-one surveillance without complexity. This 16-channel NVR captures crystal-clear 4K video across all cameras simultaneously, with dedicated PoE+ ports that eliminate cable clutter and simplify installation. Monitor every angle on one screen, review footage at lightning speed, and trust that your security system runs 24/7 without interruption. Perfect for groceries, warehouses, restaurants, and financial institutions.
Key features
- 16 PoE+ ports power and connect all cameras with single cables
- 4K video quality with 16MP decoding captures sharp, usable detail
- View and playback all 16 cameras simultaneously on one screen
- Find events faster with 16-channel simultaneous replay and speed control
- 4TB storage plus expandable up to 32TB for extended recording
- Motion and video loss detection trigger instant alerts automatically
- 1 × TP-Link VIGI 16 Channel PoE+ NVR 4TB - 4K Security
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada on orders $49+, and 30-day hassle-free returns. Our team is here when you need us.
| Video input channels | 16 channels |
|---|---|
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p, 2160p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
| Audio formats supported | G.711, G.711 μ-law, G.726 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Playback modes | Fast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse |
| Maximum frame rate | 30 fps |
| Input bandwidth | 80 Mbit/s |
| Output bandwidth | 60 Mbit/s |
| Wi-Fi | No |
| Number of HDDs installed | 1 |
| HDD capacity | 4 TB |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 4 TB |
| Maximum storage capacity | 32000 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| eSATA | Yes |
| DC-in jack | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Reset button | Yes |
| Product colour | Black |
| Power consumption (max) | 40 W |
| Power consumption (typical) | 6.2 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA, VCCI |
| Width | 330 mm |
| Depth | 285 mm |
| Height | 45 mm |
| Weight | 2.1 kg |
| Package weight | 4.1 kg |
| Packaging content | - Power Adapter - Power Cables - HDD Power Cables - HDD Data Cables - Mounting Accessories - Mouse - Quick Installation Guide |
