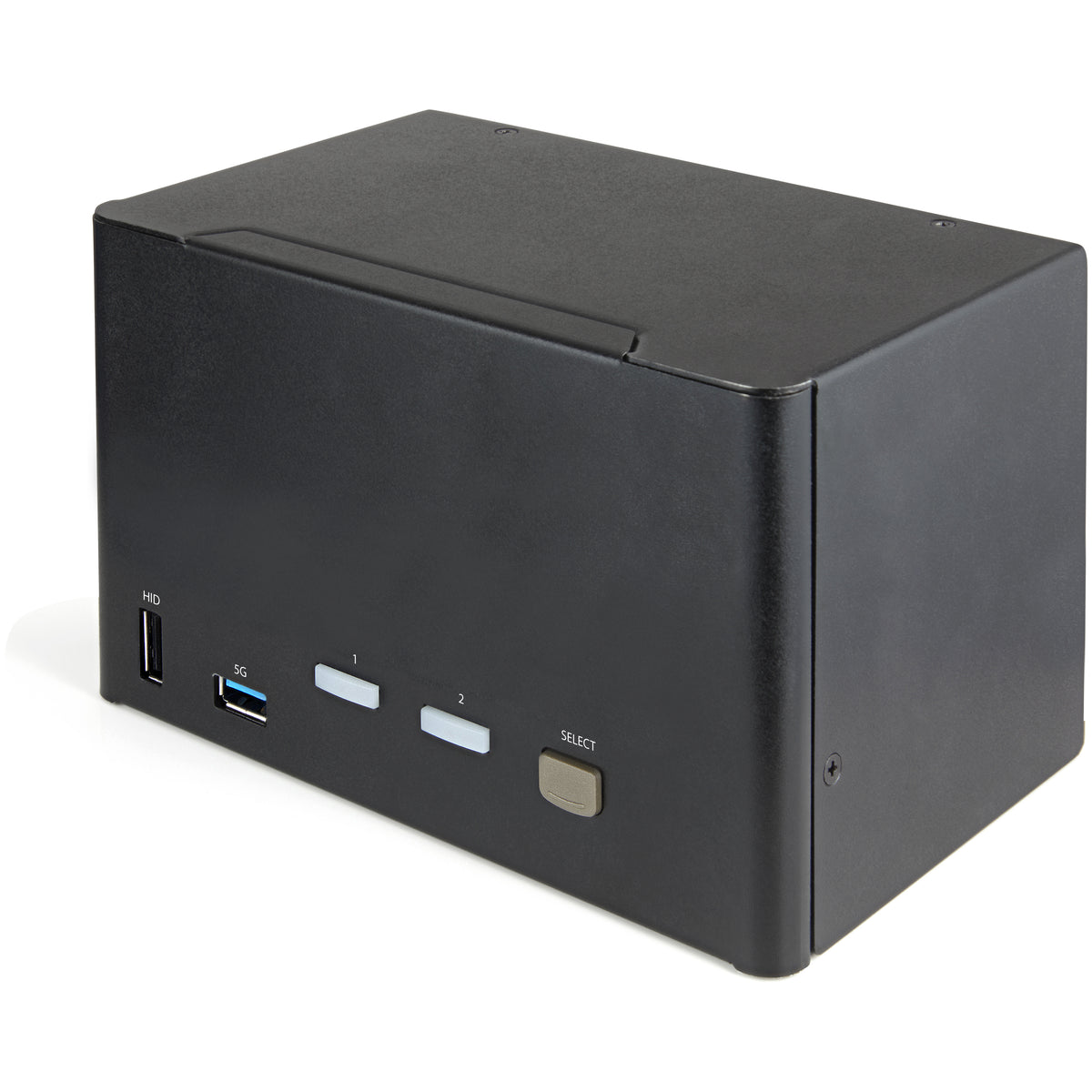

StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch 4K 60Hz
StartechSKU 147A7F
In Stock (6 available)
- 30-day returns
- Manufacturer warranty
- Free shipping over $49 (Canada)
Get it by —
Overview
Manage two computers seamlessly while driving four 4K monitors at full resolution with this professional-grade DisplayPort KVM switch. Designed for power users, video professionals, and multi-monitor workstations, it eliminates cable swapping and keeps your desk organized. The integrated USB 3.0 hub lets you share peripherals instantly, while full audio support ensures your complete setup switches in sync. Experience zero-disruption workflow switching with hotkey control and USB emulation technology that keeps productivity flowing.
Key features
- Control two computers with four 4K monitors at 60Hz simultaneously
- Integrated USB 3.0 hub shares peripherals among connected systems
- Hotkey and push-button switching eliminates workflow interruptions
- Full digital and analog audio support with 3.5mm connections
- USB emulation technology ensures fast, reliable device recognition
- TAA compliant for government and enterprise procurement requirements
- 1 × StarTech.com 2 Port Quad Monitor DisplayPort KVM Switch 4K 60Hz
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada on orders $49+, and 30-day hassle-free returns. Our team is here when you need us.
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 12 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 5.1 |
| Number of displays supported | 4 |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Certification | CE, FCC, RoHS |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 180 mm |
| Depth | 438 mm |
| Height | 43 mm |
| Weight | 959 g |
| Package width | 187 mm |
| Package depth | 253 mm |
| Package height | 102 mm |
| Manual | Yes |
| Rubber feet | Yes |
| IP control | No |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 398 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 291 mm |
| Products per master (outer) case | 6 pc(s) |
