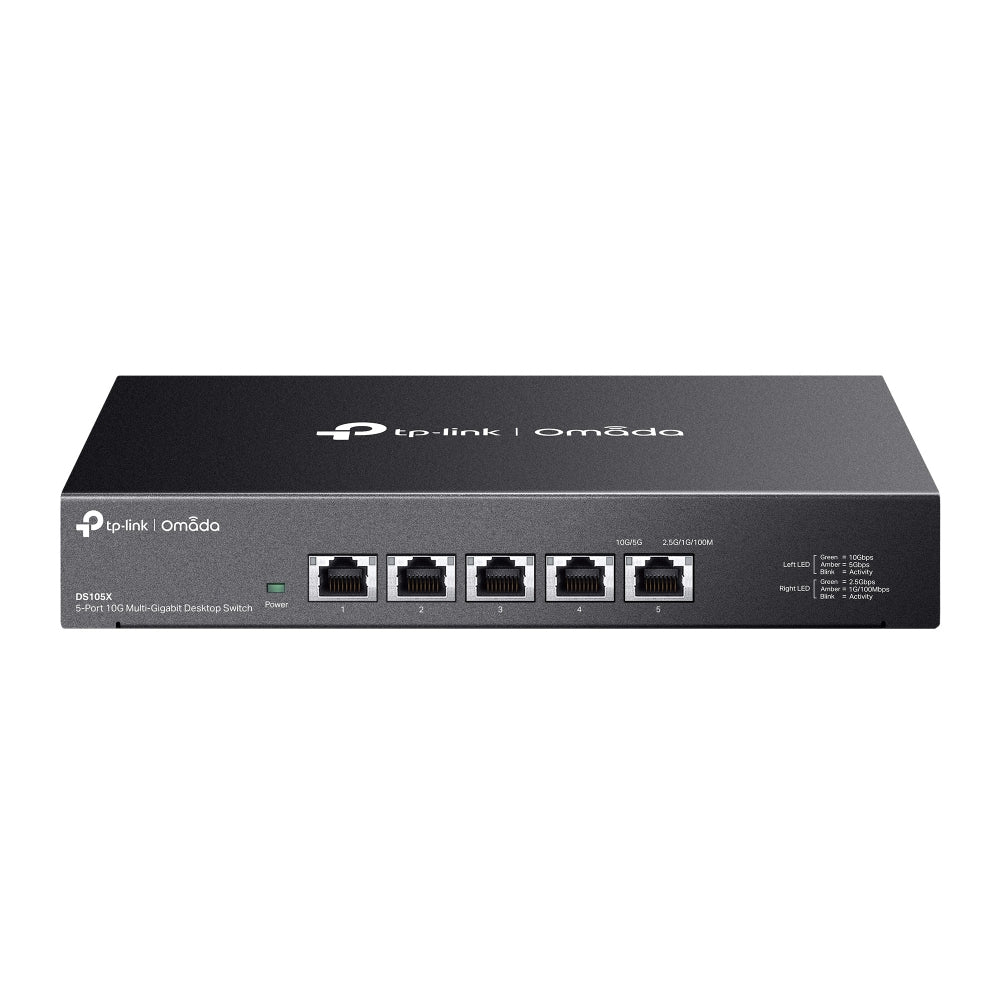

TP-Link Omada DS105X network switch Unmanaged 10G Ethernet (100/1000/1
- Brand TP-Link
- Switch type Unmanaged
- Quality of Service (QoS) support Yes
- Power connector DC-in jack
- 10G support Yes
$399.99
Out of Stock
- 30-day returns
- Manufacturer warranty
- Free shipping over $49 (Canada)
Free Shipping on Orders $49+
Estimated delivery
Get it by —
Overview
TP-Link Omada DS105X, Unmanaged, 10G Ethernet (100/1000/10000), Wall mountable
Key features
- Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
- Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance
- Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business
- Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments
- 1 × TP-Link Omada DS105X network switch Unmanaged 10G Ethernet (100/1000/1
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada on orders $49+, and 30-day hassle-free returns. Our team is here when you need us.
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 100 Gbit/s |
| Forwarding rate | 74.4 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12 |
| Packet buffer memory | 12 MB |
| IGMP snooping | Yes |
| Multicast support | Yes |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Fanless | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (max) | 25.19 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 85.65 BTU/h |
| Width | 226 mm |
| Depth | 131.2 mm |
| Height | 35 mm |
| Cables included | Power |
| User guide | Yes |
| Rubber feet | Yes |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
