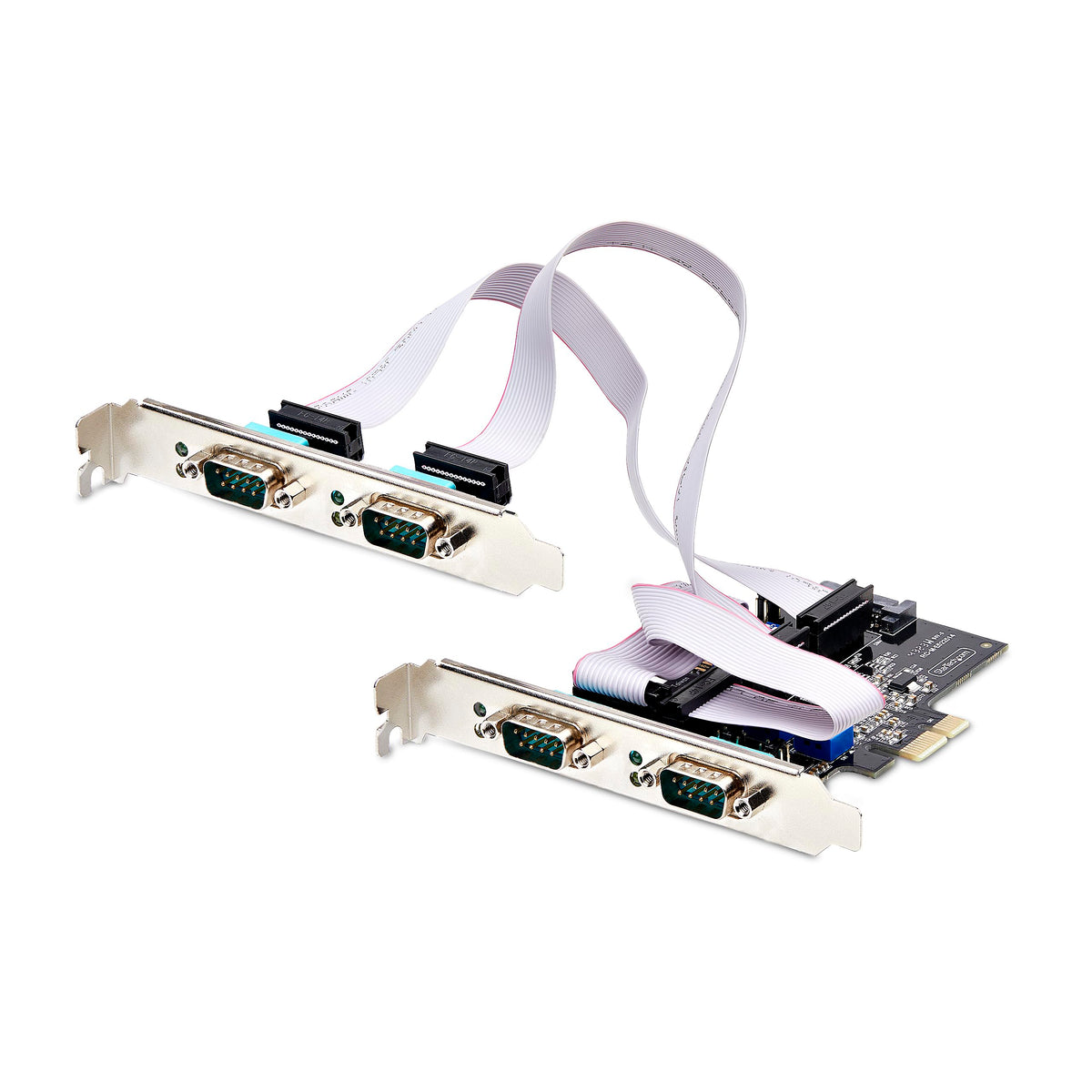

StarTech 4-PORT Serial PCIE Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compl
- Brand StarTech
- Model number PS74ADF-SERIAL-CARD
- Dimensions 12.19 x 10.92 x 1.52 cm; 58.97 g
- Country of origin Taiwan
- Connectivity PCI Express x1
Out of Stock
- 30-day returns
- Manufacturer warranty
- Free shipping over $49 (Canada)
Get it by —
Overview
4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables
Key features
- 4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
- CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers
- APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables
- STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers
- TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 4x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
- 1 × StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/R
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada on orders $49+, and 30-day hassle-free returns. Our team is here when you need us.
| Brand | StarTech |
|---|---|
| Model number | PS74ADF-SERIAL-CARD |
| Dimensions | 12.19 x 10.92 x 1.52 cm; 58.97 g |
| Country of origin | Taiwan |
| Connectivity | PCI Express x1 |
| Style | 4-Port |
| Weight | 59 g |
| Compatible devices | Personal Computer |
| Number of Items | 1 |
| Unit count | 4 Count |
| Mfr Part Number | PS74ADF-SERIAL-CARD |
| Warranty | 2-Year |
| Operating system | Windows 7, 8, 8.1, 10, 11 , Windows Server 2016, 2019, 2022 , Linux 2.6.13 and newer (LTS Versions Only) |
| Style Name | 4-Port |
