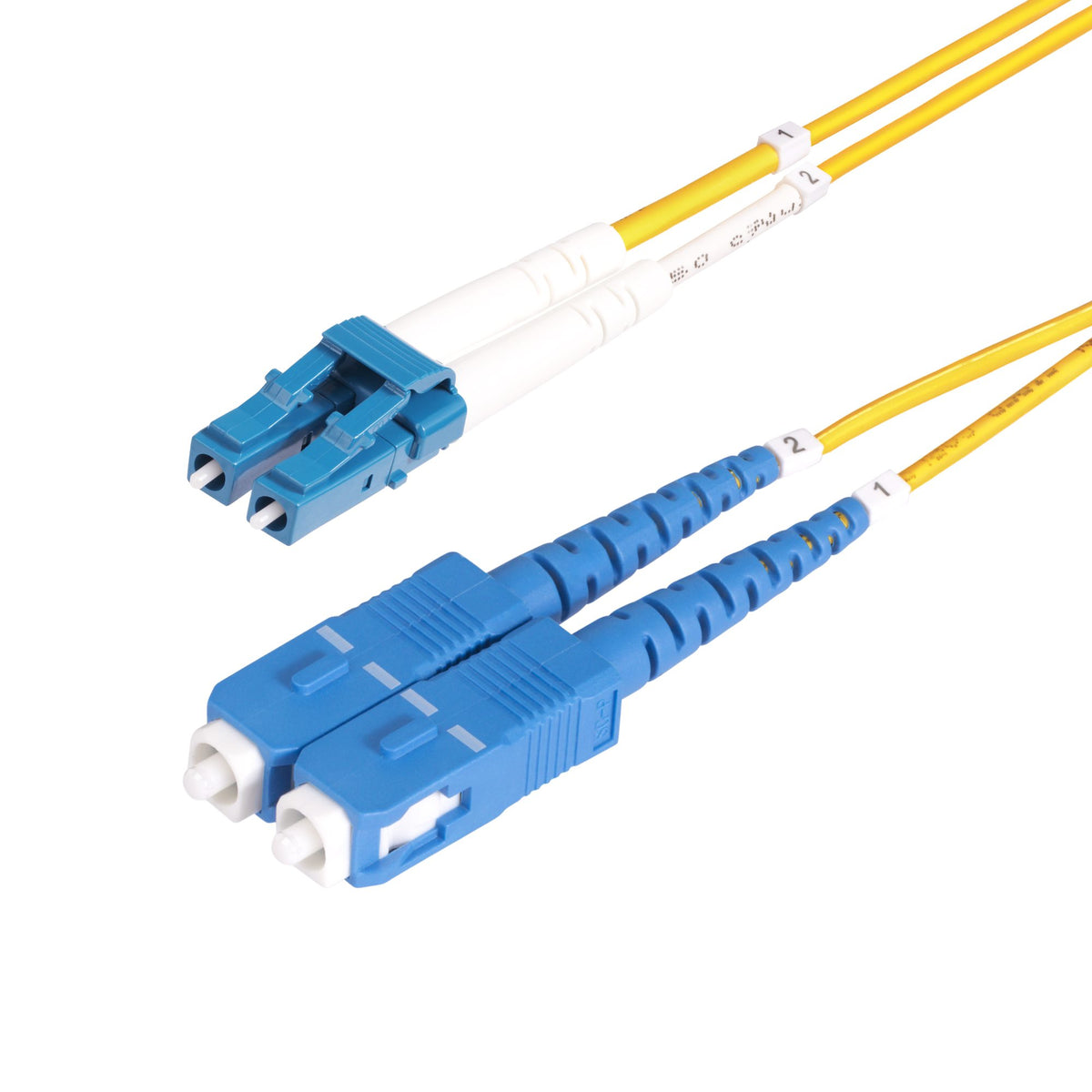

Câble fibres optiques StarTech.com 2 m (6,6 pi) LC vers SC (UPC) OS2 monomode duplex
- Marque Startech
- Cable length 2 m
- Fibre optic type OS2
- Connector 1 LC
- Connector 2 SC
$24.59
En stock (5 disponibles)
- Retours sous 30 jours
- Garantie du fabricant
- Livraison gratuite dès 49 $ (Canada)
Livraison gratuite dès 49 $
Livraison estimée
Recevez d'ici le —
Overview
StarTech.com 2m (6.6ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord, 2 m, OS2, LC, SC
Key features
- OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
- QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Numbered connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
- SPECS: 2 meter (6.6 foot); OS2 Single Mode; LC/SC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
- 1 × StarTech.com 2m (6.6ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Op
Why Solutions Bureaupak?
We carry trusted brands for work, home, and everyday use — with competitive pricing, free shipping across Canada on orders $49+, and 30-day hassle-free returns. Our team is here when you need us.
| Cable length | 2 m |
|---|---|
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | PC |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm |
| Data transfer rate | 10 Gbit/s |
| Insertion loss | 0.3 dB |
| Return loss | 55 dB |
| Jacket material | Low smoke zero halogen (LSZH), Polypropylene |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Cable diameter | 2 mm |
| Bending radius | 1 cm |
| Package width | 200 mm |
| Package depth | 201 mm |
| Package height | 14 mm |
| Package weight | 25.4 g |
| Quantity per pack | 1 pc(s) |
| Attenuation (max) | 0.35 dB/km |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 300 pc(s) |
